ATM Magnetic Stripe Reader Module Enables Smart Access

The ATM magnetic stripe reader remains the silent sentinel inside thousands of automated teller machines, parking kiosks, and self – service terminals. At Tianteng, we have spent two decades refining that sentinel into a compact, tamper – resistant module that does far more than swipe a magstripe. Our latest R600 series combines IC, RFID, and magnetic – stripe technology in a single, embedded form factor. That integration means bank customers enjoy quicker authorizations, transit riders breeze through turnstiles, and system integrators cut their development timelines in half. In this article we explain why our module enhances secure access, how its design keeps maintenance costs down, and where forward – thinking partners are deploying it today.

Built – in Intelligence for Seamless Access

It takes more than a good read head to protect financial data. We embed a secure MCU that encrypts track data before it ever leaves the reader. Firmware monitors voltage spikes, card – pull timing, and unusual command patterns, locking the module if tampering is detected. Users still experience a fluid swipe or tap, but fraud tools are left with scrambled chatter.

✅  Real – time AES data encryption

✅  Automatic tamper shutdown and audit log

✅  Firmware signed and field – upgradeable over USB

Because the module supports ISO 7816 IC cards, ISO/IEC 14443 Type A/B contactless cards, and classic magnetic stripes, operators can migrate customers to chip or RFID credentials without replacing the terminal. One reader, one bezel – zero downtimes.

Long service life also matters. We specify 800 000 magnetic cycles and 300 000 IC insertions thanks to stainless – steel guide rails and self – cleaning contacts. That endurance translates into fewer truck rolls and a predictable total cost of ownership for fleets of ATMs or ticket vending machines.

Engineering Highlights That Keep Operations Running Smoothly

1) Versatile Card Compatibility

The R600 module reads and writes:

✅  IC cards – ISO 7816 T=0/T=1 CPU and PSAM, compliant with EMV L1

✅  RFID cards – MIFARE Classic S50/S70, Ultralight, Plus, and Desfire families

✅  Magstripe – ISO 7810/7811 track 1 – 3, hi – co & lo – co

Our multi – in – one approach saves board space and simplifies certification. For integrators designing kiosks or branch equipment, a single 54 mm mouth accommodates every mainstream credential in finance, transit, and hospitality.

2) Designed for Easy Integration

Most legacy readers require separate power bricks or proprietary cables. The R600 draws a lean 5 V DC and enumerates as USB HID or RS – 232, so developers can start coding in minutes without kernel drivers. Peak current tops out at 250 mA, letting designers share a standard USB bus with displays, printers, or biometric sensors.

Environmental specs meet global deployment demands:

•  Operating temperature: 0 °C – 50 °C

•  Humidity tolerance: 20 % – 80 % RH

•  RoHS and CE certified; optional FCC and PCI PTS files available upon request

A removable front shutter blocks dust in desert kiosks and keeps salt spray out of seaside ATMs, while the molded PC frame resists UV discoloration – both small details that extend field life.

3) Maintenance Made Predictable

Service windows cost money. Our design team therefore placed the magnetic head and IC pins on a quick – swap carrier secured by two Torx screws. A technician can swap wear parts in under five minutes without uninstalling the motherboard. Remote diagnostics report insertion counts and CRC errors, letting operators schedule maintenance before a failure ever occurs.

Creating Value Across Banking, Transit, and Beyond

•  Banking & Self – Service Terminals

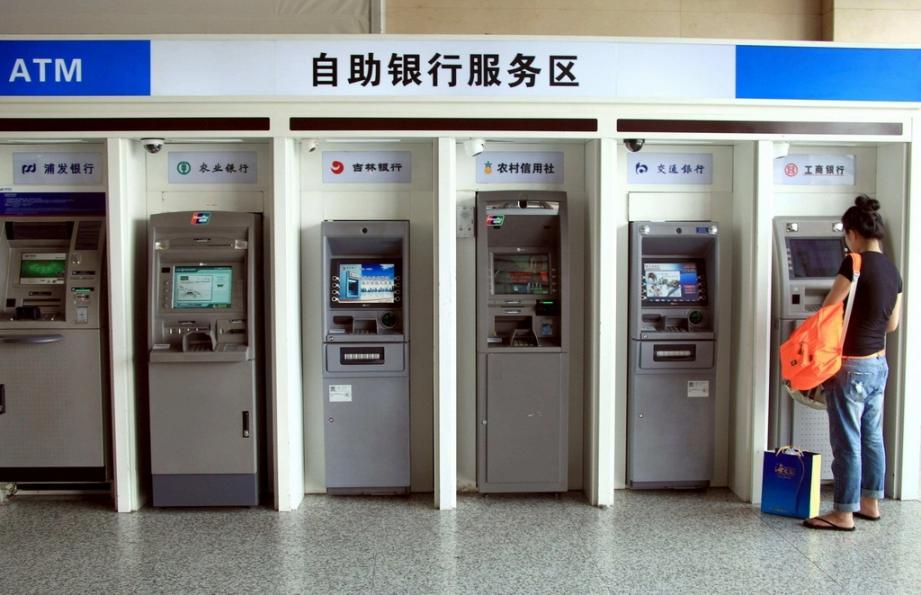

Retail banks deploy our ATM magnetic stripe reader module in lobby ATMs and cash recyclers to handle both legacy magstripe cards and the latest dual – interface EMV cards. Customers enjoy a single, familiar slot; banks enjoy PCI – ready encryption and reduced skimming incidents.

A mid – tier bank recently replaced three separate reader SKUs with the R600. Deployment time dropped, and service calls fel within the first year because the branch staff could hot – swap modules without touching software. Savings went straight to the bottom line.

•  Transportation & Smart Mobility

Transit authorities want reliable gates, not hardware headaches. The R600 supports contactless fare media up to 3 cm away, allowing fast tap – and – go even when riders carry phones or wallets. Magnetic ticket fallback ensures tourists with older magnetic cards still get aboard. Cities in China have cut queue times during rush hour after retrofitting gates with our modules.

•  Access Control, Retail, and Healthcare

From corporate lobbies to patient records rooms, facilities choose the R600 because a single device authenticates staff badges, visitor magstripes, and high – security CPU cards. Retail chains tie the module into loyalty terminals so customers can tap an RFID club card, swipe a gift card, or insert a chip credit card without changing lines. All interactions funnel through the same encrypted channel, keeping compliance audits simple.

Final Words

Over 24 years of export experience taught us that no two projects are identical. Our R&D engineers collaborate directly with OEM and ODM partners to tune firmware commands, adjust bezels, or add conformal coatings for offshore platforms.  At Tianteng, we believe secure access should feel effortless. Our ATM Magnetic Stripe Reader Module delivers that experience by blending robust security, wide card compatibility, and practical engineering touches that slash downtime. Whether you build cash machines, parking meters, or ticketing kiosks, the R600 turns card handling into one less thing to worry about – today and for years to come.
